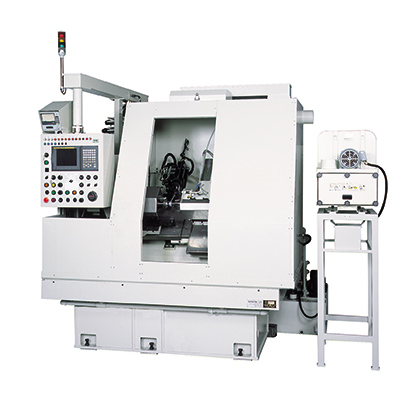

Not flinching, Not shrinking and cutting daringly but finishing spark-out finishes speedy.
This machine for mass production has the above charactors. It processes works at high-speed, high-precision and it dose not need maintenance.

Features

●Work spindle
This is large type (φ80mm) spindle. Lubrication uses CPS type. Its dynamic balance, including around parts, is perfect.
(We guarantee that its precision circularity is 5μm by maker's standard test piece.)
●Wheel spindle
In 10,000min-1、20,000min-1、25,000min-1、35,000min-1、and 45,000min-1 all type spindle, we use ceramic bearing in their spindle. And lubrication uses CPS type. (Oil air is used in part.)
In both belt drive system and built-in motor system, high-power motor (5.5kW〜14kW) is adopted. So it is possible to act high power grinding.
●Slide
Both X-axis (up/down slide) and Z-axis (left/right slide) do dynamic pressure and static pressure sliding system.
All ball thread support bearings get CPS lubrication. In order that its structure and elaborate scraping process makes good condition. This machine becomes maintenance free for a long time.

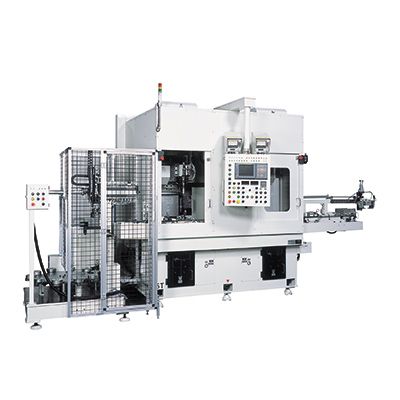

●High speed transfer ROBO loader (Option)
Integrated ROBO loader device is the transferring system that is high coordination by same control unit with the machine, high speed and high reliability. In addition, all mechanical parts are our original design so, it is high rigidity. The loader’s maximum transfer weight is 9kg.

Specifications

● Machining sizes　Inner dia.　φ14～φ180mm, Grinding length　Max.200mm
● Setable sizes　Outer dia.　Max.φ300mm, Length　300mm
● NC unit　FANUC 0iT
● Standard attachments　Standard type Coolant tank, Leveling block, Standard tool box

Special attachments

● Mearsuring device…Rear or Front
　　　　　　　In-process or Post-process
● Mounting fixture…Collet chuck
　　　　　　　Diaphragm chuck
　　　　　　　Electromagnetic chuck
　　　　　　　Finger chuck
　　　　　　　Composition chuck
● Dressing device…Rotary dressing device
　　　　　　　Dia. Type dressing device
● Transfer device…Conveyor/Stocker device/Loader device
● “Air-Zero” (Work contact) device
● Front Auto door
● Automatic wheel safety cover
● Automatic chuck cover

● Low cost
● Save space・Save energy
● Very strong grinding
● Earth conscious

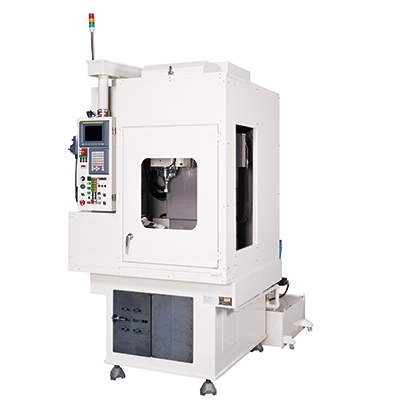

Specifications

● NC unit　FANUC 0iT
● Work axis　1.5/2.2kW AC Servo spindle motor
● Wheel axis　11kW Built-in spindle motor, Ceramic Bearings are used in wheel spindle.
● CPS lubrication MC-D series (TACO)
● Z-axis stroke　400mm (up/down slide)
● X-axis stroke　300mm (left/right slide)
● Standard attachments　Standard type Coolant tank, Leveling block, Standard tool box

Special attachments

●Mounting Fixture : Collet chuck/Diaphragm chuck etc...
●Measuring device : (In-process or Post-process) auto measuring device
●Dressing device : Built-in motor type Rotary dressing device
●Transfer device : Loading device, IN-OUT stocker device

● Automation support
● Maintaining high accuracy and productivity
● High originality and maintainability
● High process capability and economy

Features

●Automation support
　Packaging the IN・OUT conveyor and robot system in compact.
　Long time unmanned operation is possible because a CBN grindstone can be used and coupled with in-process automatic sizing device.
●Maintaining high accuracy and productivity
　Suppress the spindle elongation by heat and manage thickness dimensional accuracy with high precision.
　Long time correction will not be needed by using in-process automatic sizing device.
　The balance of all components of the rotating object(axis, pulley, adapter, plate etc) is maintained, and even at high speed rotation, the imbalance is kept extremely small.
　Fade-out grinding method(our original method) achieves a high level of surface roughness with a short spark-out time.
　High rigidity and high speed rotation can bring out the performance of grinding stones.

Specifications

● Target work　 Small gear inner diameterφ12(MIN)/ outer diameterφ180(MAX)
[Weight]MAX 1.2kg (can transport reasonably)
※Work with more than the above diameter is available with special specifications
● Wheel spindle speed　10,000min-1・20,000min-1・25,000min-1
※Series of 3 kinds of spindles
● Wheel spindle motor　 Select High frequency motor:5.5kW / Inverter motor:3.7kW
● Work spindle motor　 Select Inverter motor:1.5kW /AC servo spindle motor:1.5,2.2kW
