Rolling M/C

VGR-1NC・VGR-2NCW

Inner Circumferential Gear Rolling M/C・
2-Axes Inner Circumferential Gear Rolling M/C


製品写真

VGR-1NC/Inner Circumferential Gear Rolling M/C

Adjustable spindle speed!
Auto rolling machine for machining high precision and quality work.

Features
This machine rolls precisely inner circumferential gear (mainly: spline) to a die and processes automatically by setting work to the die. It consists of the spindle feed device, tail stock section, roller body for storing jig roller and pressure device. The cutter spindle speed can be set optionally by controlling inverter. It is possible to set loading and unloading device as an option.
Specifications
    ● Work Inner dia. Min 40mm , Outer dia. Max 170mm
    ● Pressure in rolling Max6,000kg
    ● Roller feed stroke Max20mm
    ● Spindle speed (Stepless speed by inverter control) 180r.p.m(60Hz)~270r.p.m(90Hz)
    ● Feed stroke 380mm
    ● Clamped work height(die core) 1,140mm
    ● Power 5.5kW
    ● NC unit FANUC 35iB
製品写真

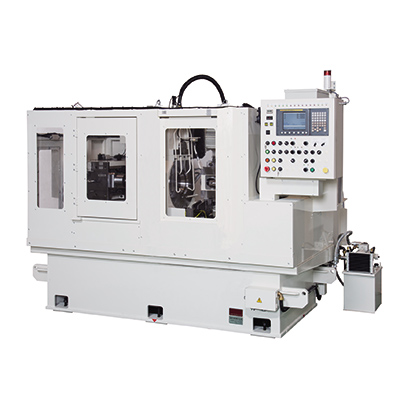

VGR-2NCW/2-Axes Inner Circumferential Gear Rolling M/C

This machine rolls the inner circumferential sleeve spline in a die form at a high precision.
It is equipped with the auto loader to process the works automatically.

Features
1. The work drive system made the accuracy of rolling and positioning improved.
2. The headstock and the tailstock support both side of the tool. As a result, a uniform rolling of work is possible and it does not incline.
3. The following items can be optionally set.
● The workhead is controlled by the inverter so the spindle speed is optionally set.
● NC unit can set the rolling infeed quantity easily.
● The NC unit can set the tool position easily.
Specifications
    ● Work Inner dia.120mm Total width35mm
    ● Pressure in rolling Max.4,000kg
    ● Roller feed stroke Max.30mm
    ● Spindle speed (work) (Non-stage speed change by inverter control) 120r.p.m(60Hz)
    ● NC unit FANUC 35iB
    ● Power 9.5kW
    ● Approx. weight 7,000kg
