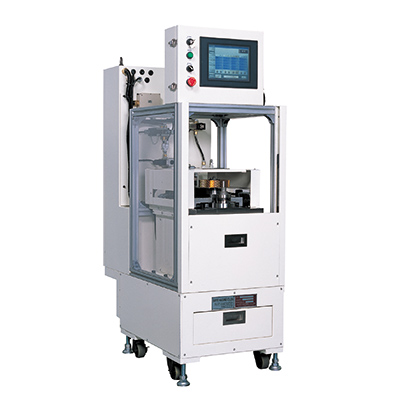

This is the engaging checker for both teeth surfaces to evaluate the nicks of gear, tooth deflection, OBD dimensions to OK or NG by engaging the master gear.
Improvements of the operability and miniaturization were realized by making a measurement amplifier a NEW version(GC-4000).

Specifications

● Measuring amp　GC-4000（NEW）
● Measuring sensor　LINEAR SCALE
● Equipment size　W550mm×D1000mm×H1650mm
● Option specifications　Printer, Area sensor, Data collector unit, NC system of CUTTER INTERVAL, Interlock for automation(ROBOT)
【Amp. specifications】
● Normal measurement item　OBD, NICK, RUN OUT
● Optional measurement item　Inner dia., Outer dia. deflection, Width and deflection of end face

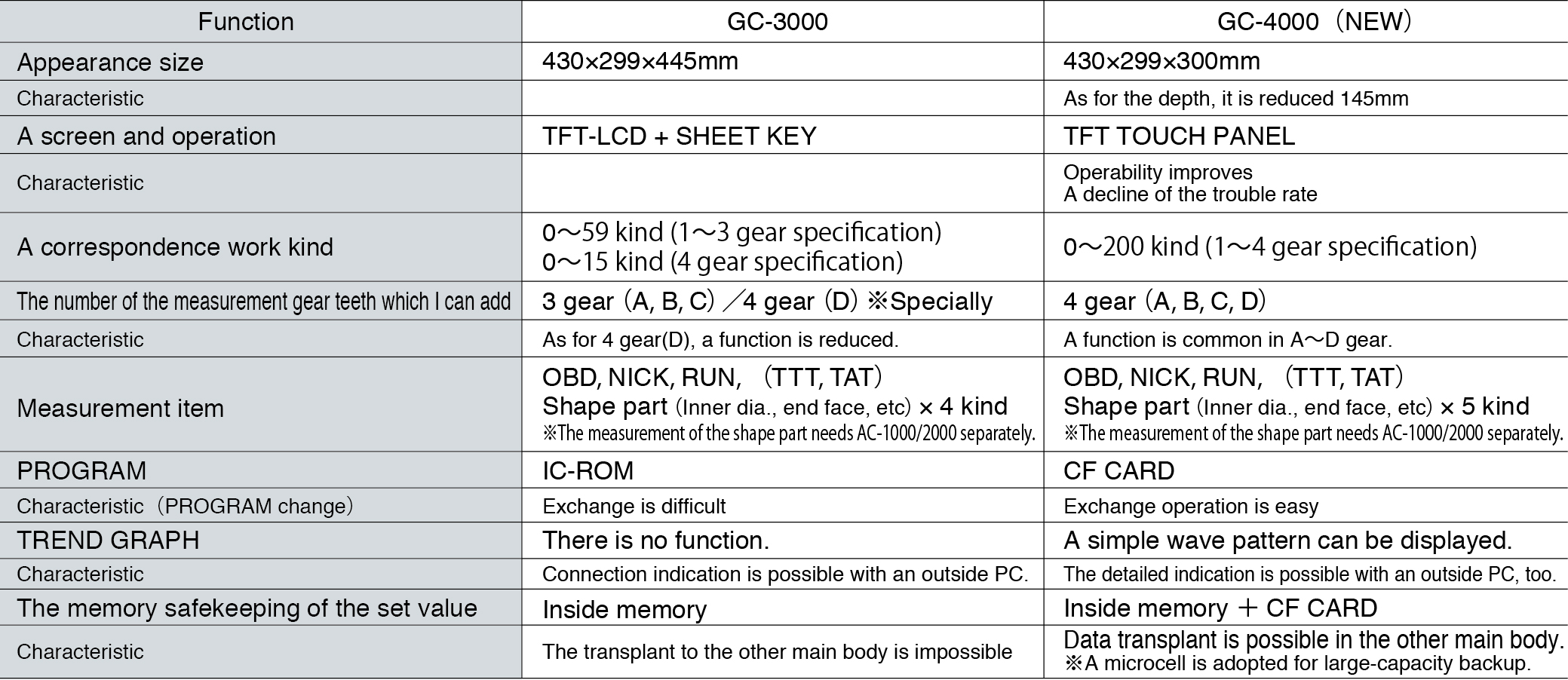

Comparison for function

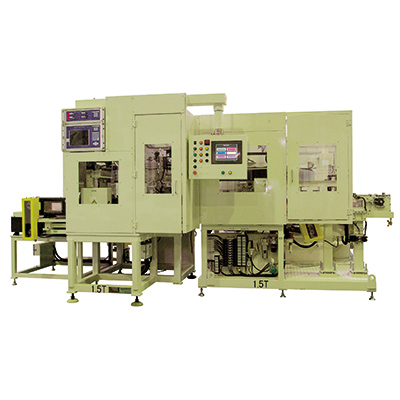

This is the engaging checker for both teeth surfaces to evaluate the nicks of gear, tooth deflection, OBD dimensions to OK or NG by engaging the master gear.

Features

● Measuring amp　Sanyo Machine Original
● Measuring sensor　LINEAR SCALE
● Various option specifications
　 Washer, Burnisher, IN/OUT Stocker, Auto Transfer Unit, Printer, NC system of CUTTER INTERVAL, Master Gear, Monitor Gear, Burnisher Gear, Fixture Jig
【Amp. specifications】
● Normal measurement item　OBD, NICK, RUN OUT　
● Optional measurement item　Inner dia., Outer dia. deflection, Width and deflection of end face
